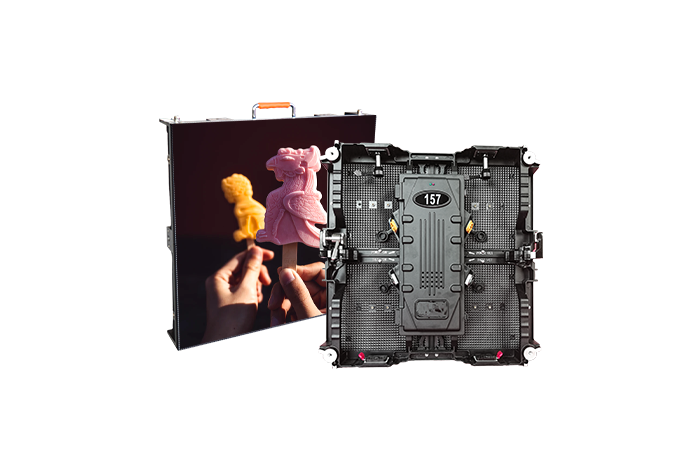

P5 indoor LED Display P5 indoor LED Display

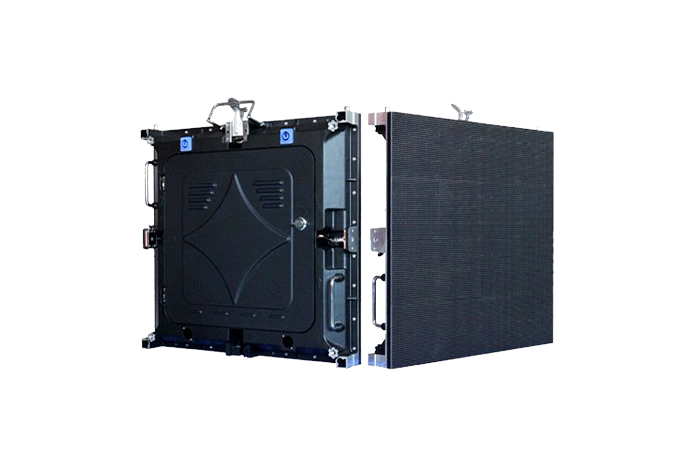

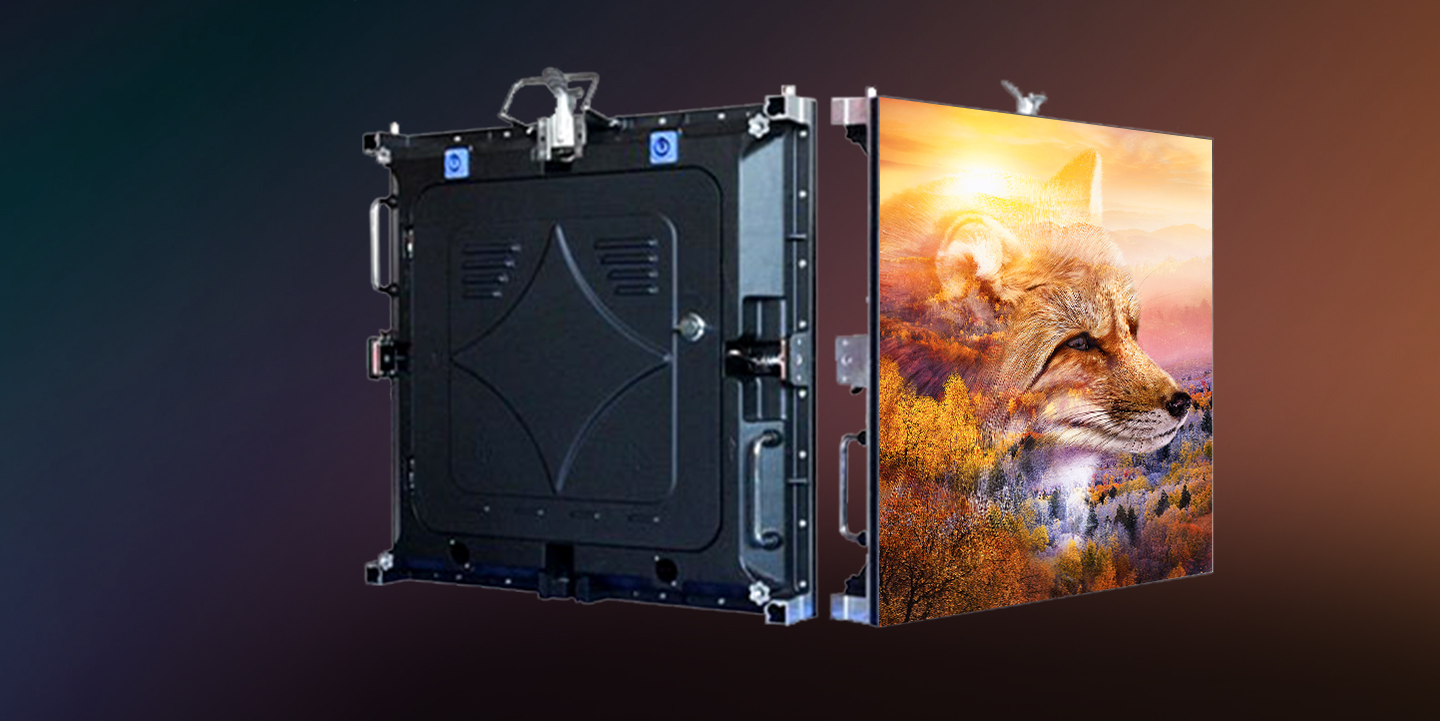

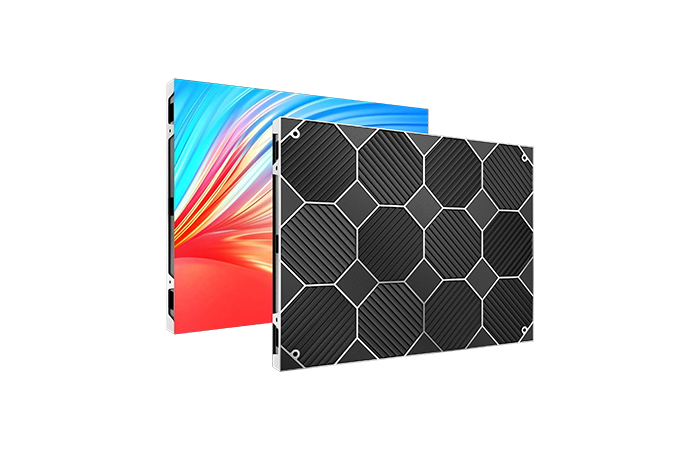

Die-Casting Aluminum LED Display

P5 indoor LED Display

P5 indoor LED Display

P5 indoor LED Display

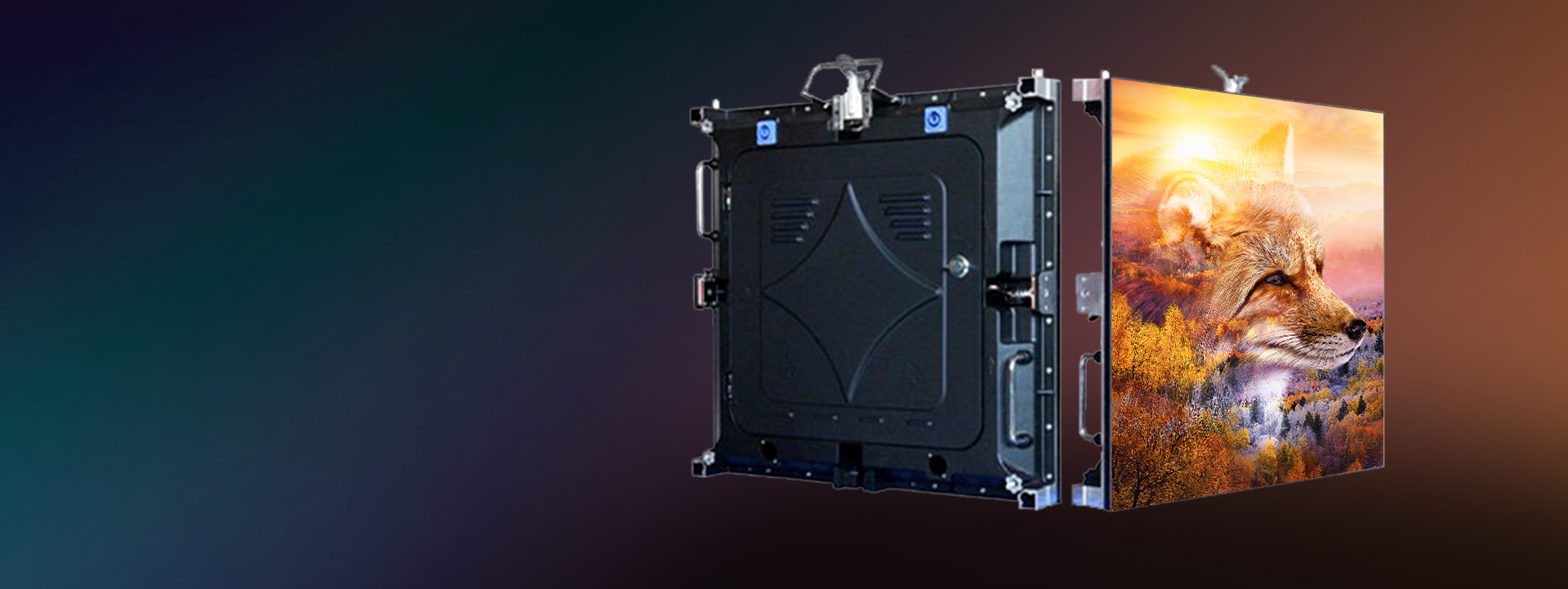

1. Ultra thin & light weight (only 8Kg/panel), portable handy.

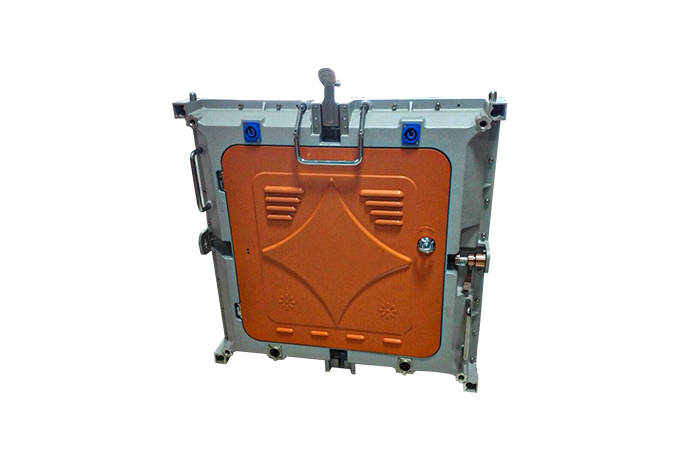

2. Die-casting aluminum cabinet design with high precision.

3. Modular design, make it easy to maintain and replace.

4. HD show without water ripple on program broadcasting.

5. Easy to assemble & dismantle with fast locks on each cabinet.

6. High gray level & good color uniformity with brand lC, led lamp.

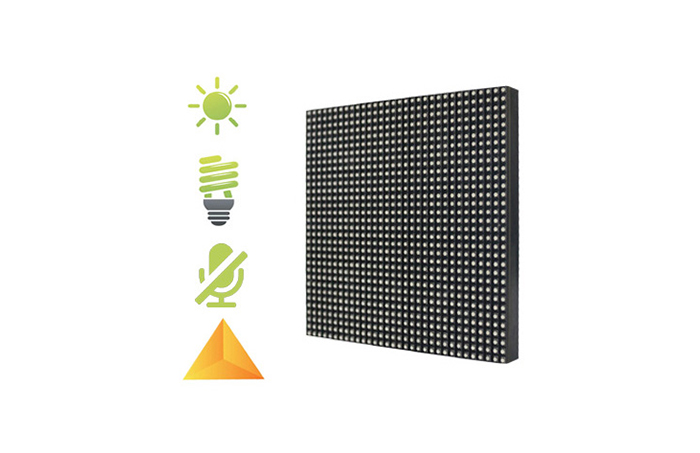

7. Energy saving without fans design, exclusive natural cooling effect

High Definition & Contrast Ratio

Compared with traditional white leds, pure black leds can obtain a better color uniformity and higher contrast ratio. Brand LED lamp with black body structure and black lamp mask provides 3000:1 contrast ratio, clearer and more bright-colored image.
P5 indoor LED Display

High Gray Scale & High Refresh Rate

Low brightness with high gray scale, and high refresh rate,more delicate display performance. This high definition led display choose the updated control solution and high quality Driver IC to realize brightness and Gray scale adjustment automatically. The latest control solution support pixel-pixel brightness correction to boardcast realistic pictures.
P5 indoor LED Display

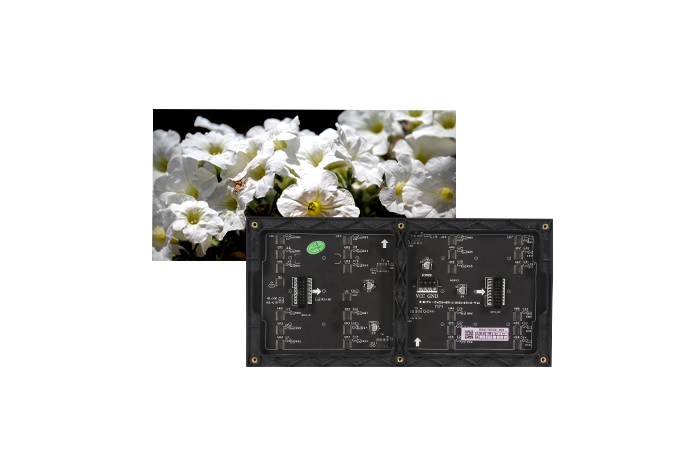

Pixel pitchp5

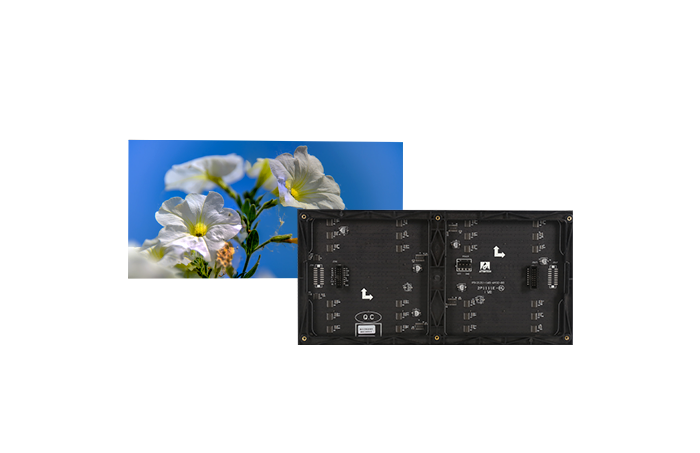

Module size320x160mm
Pixels Density40000dots/sqm
Pixel configuration1R1G1B
Drive mode16s
LED packagingSMD2121
Module resolution64x32
Module weight0.44kg
Module interfaceHUB75-E
Module working voltage5V
Life span100000hours
Refresh rate1920Hz
Modules per square meter19.5pcs
White balance brightness800~1000NITS
Working temperature-20~50
Working environment humidity10%~70%
Screen working voltage220V±15%/110V±15%
Best viewing angle≦140°
Noise rate<0.0001
IP ratingIP43
Cabinet size640x640mm

The specifications are for reference, actual values may vary.

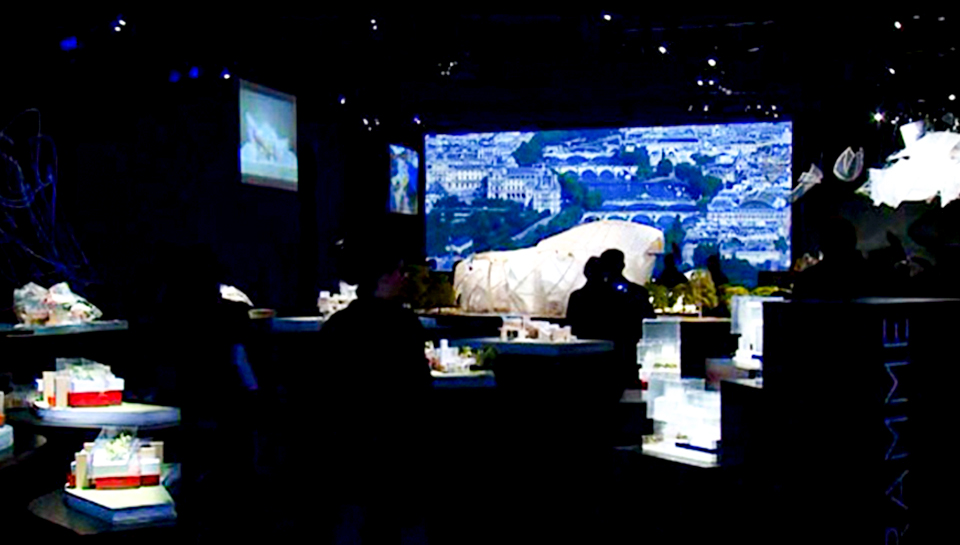

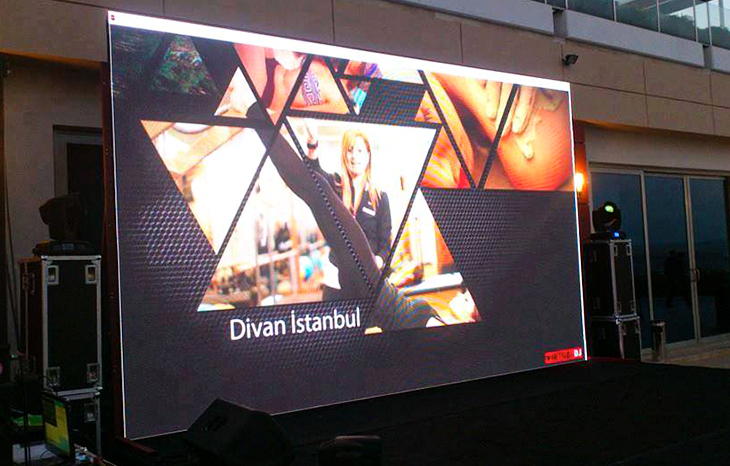

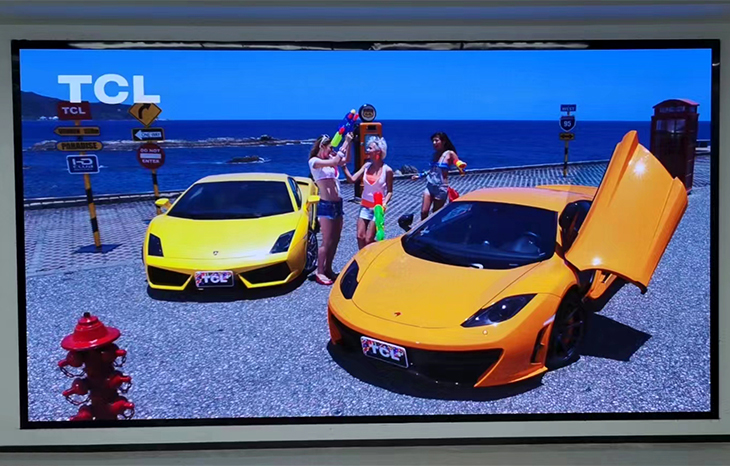

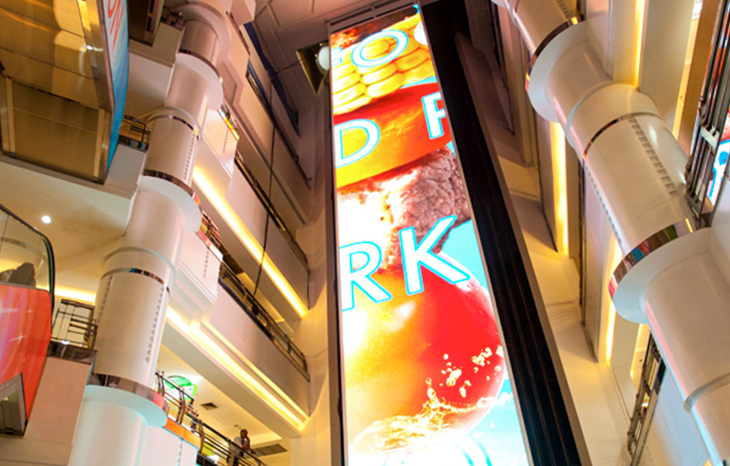

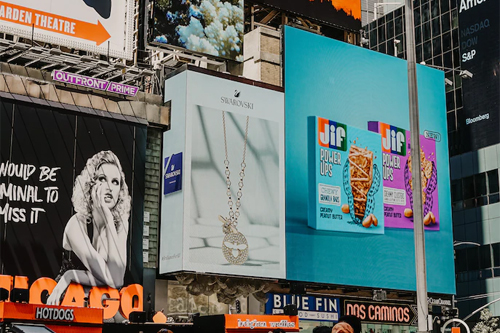

Relevant cases

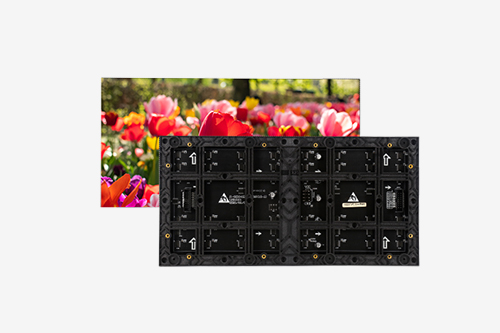

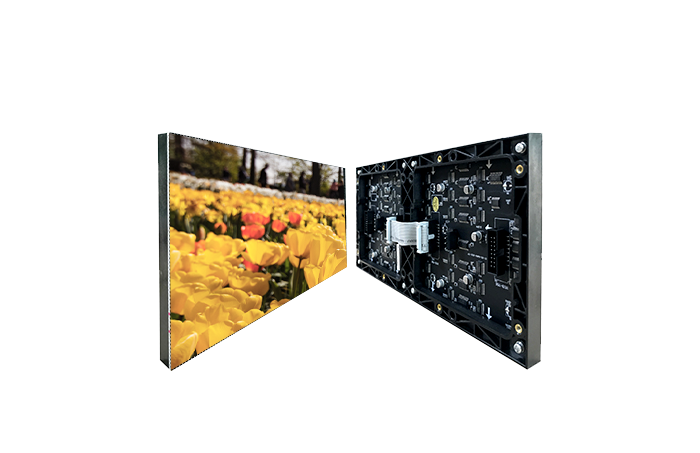

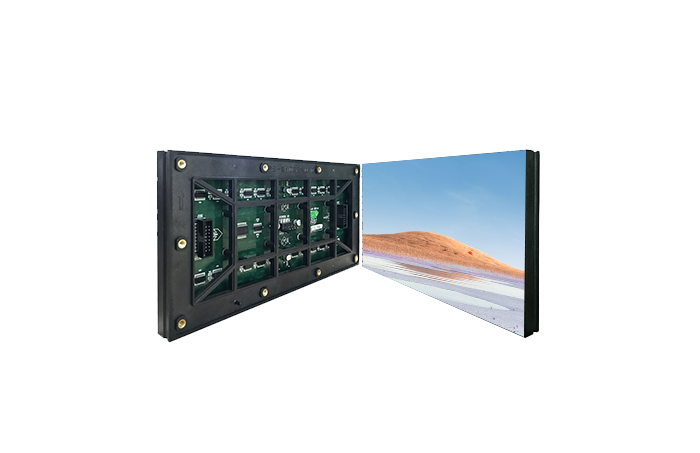

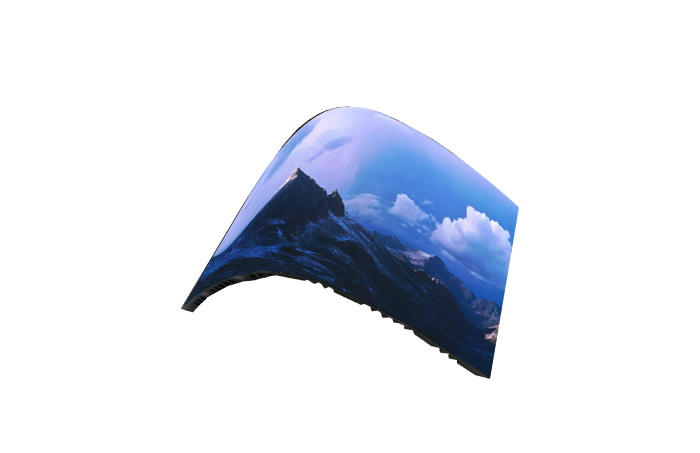

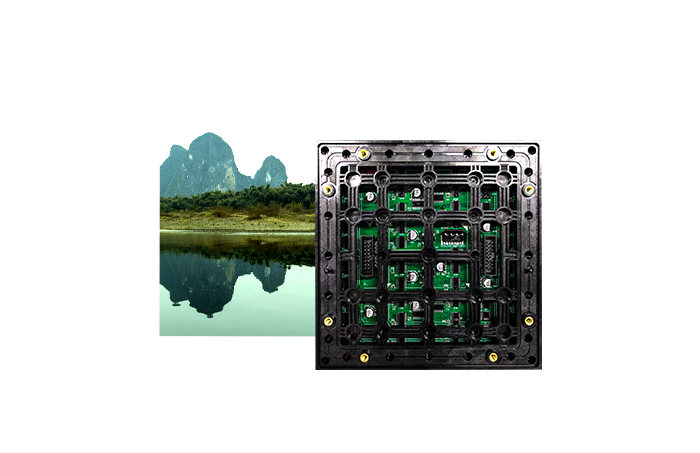

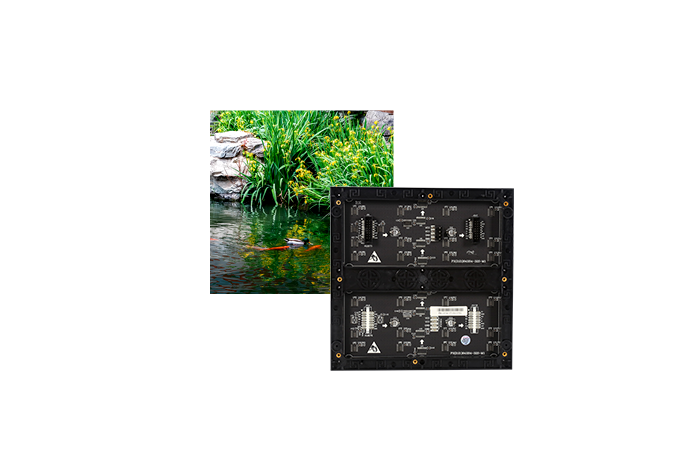

Relevant product
