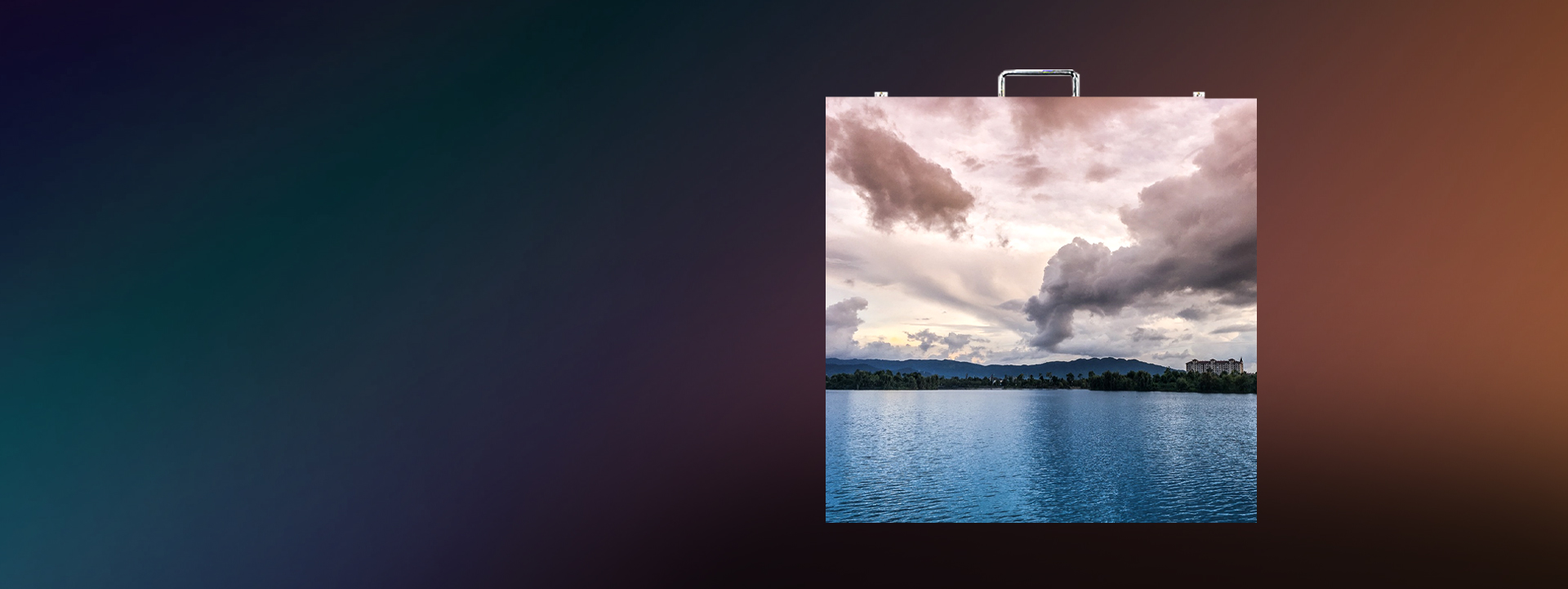

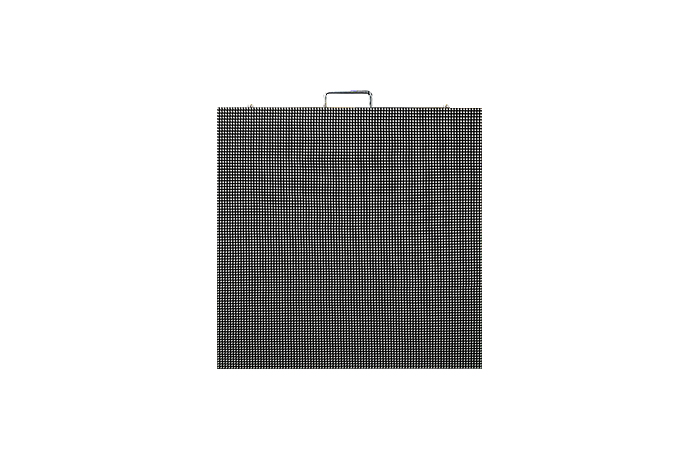

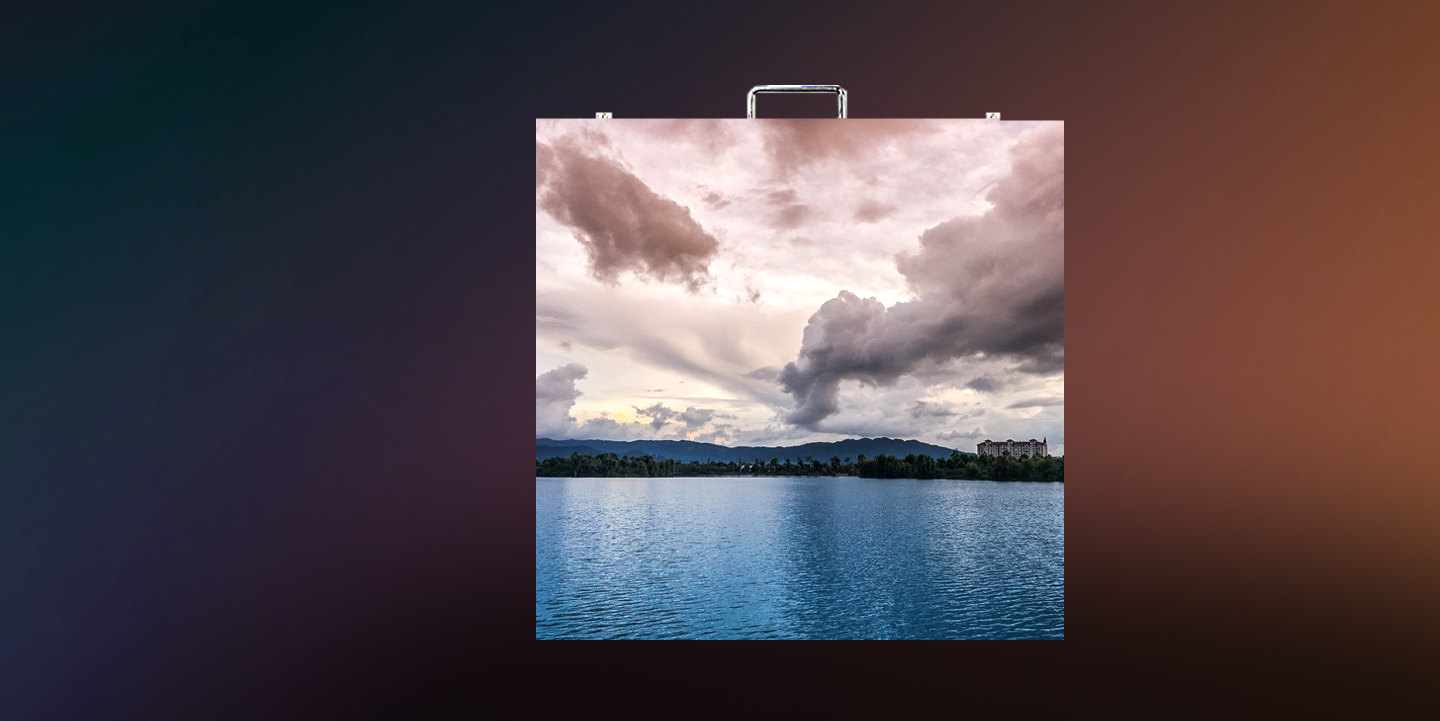

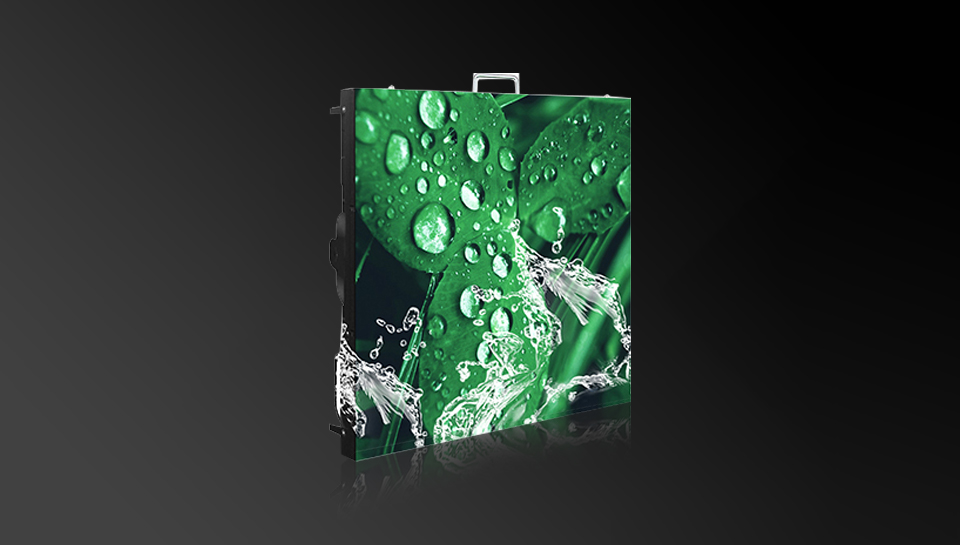

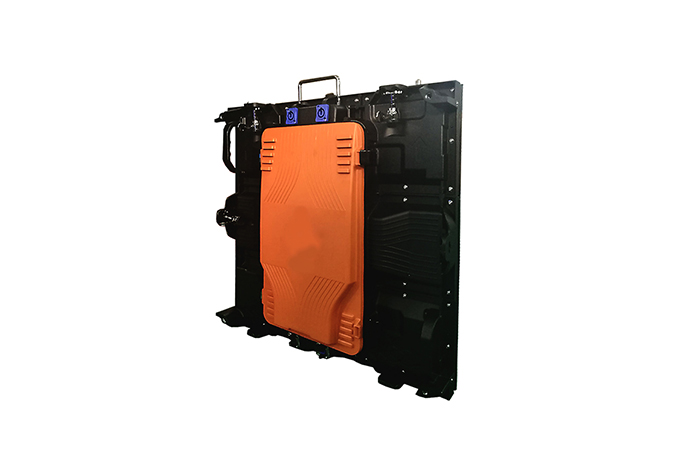

P3 outdoor LED display

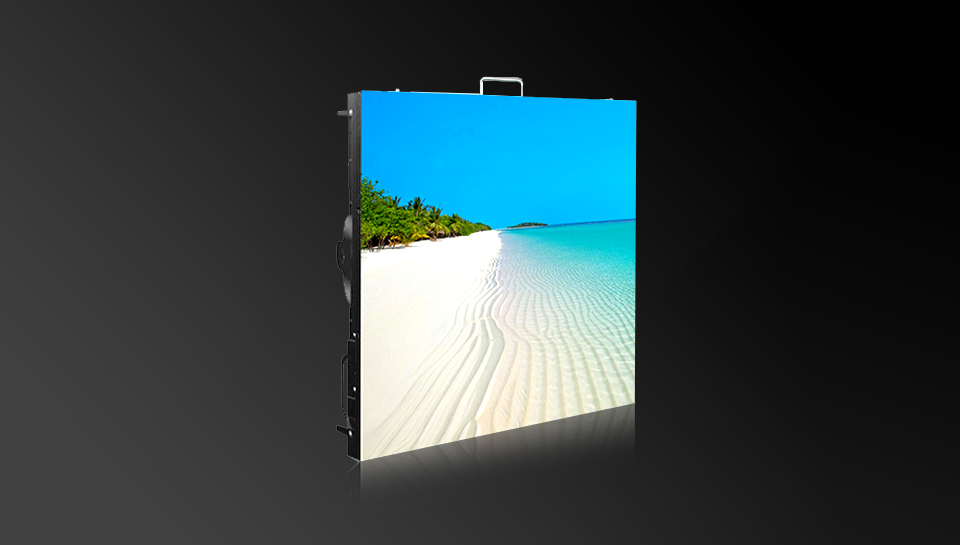

1. Light and slim cabinet allows quick build screen in short time.
2. Die-cast aluminum molding technology produces high precision and rigid cabinet. lt can ensure the whole screen in good uniformity.
3. Cabinet size is 640*640mm,unit cabinet weighs 11kgs. lt's ideal for rental installation occasions which require small manpower and quick set up.

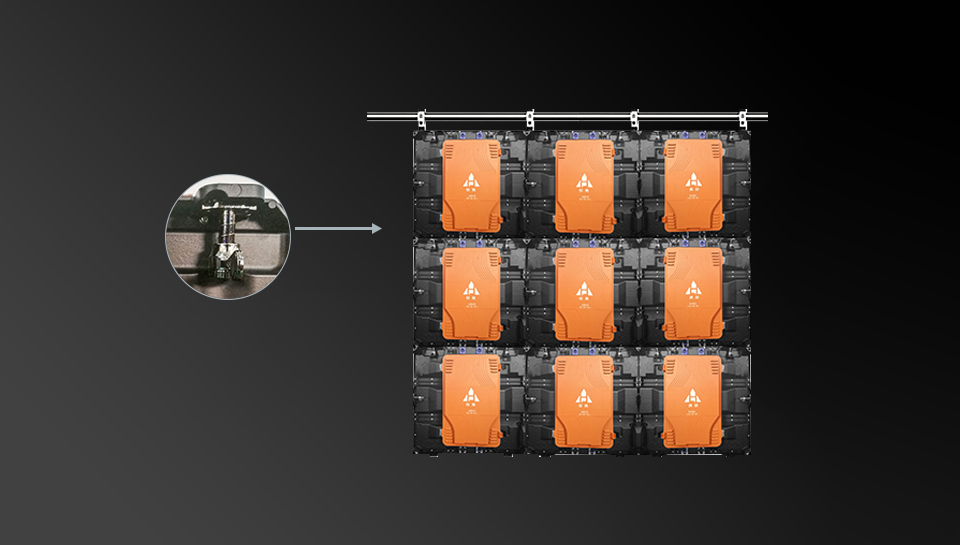

4. Four sets fast lock locate in left and right side, so does up and down side. Without professional tooling, only two hands still can lock the screen.

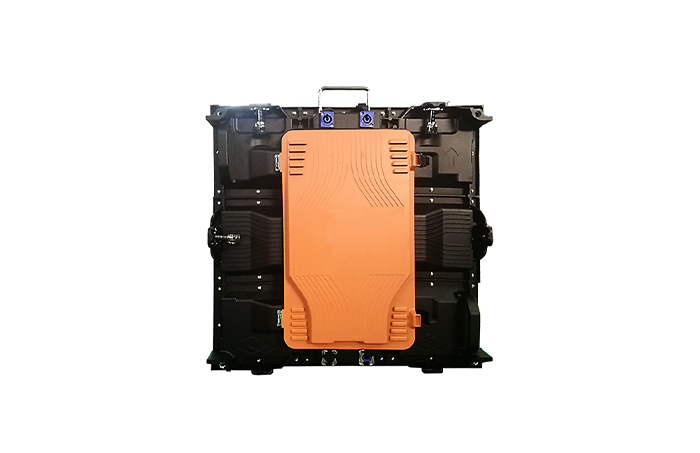

5. Separate power and receiving card control box design allows completely replace if it failures to work.
| Pixel pitch | p3 |
| Module size | 192x192mm |
| Pixels Density | 111111dots/sqm |
| Pixel configuration | 1R1G1B |
| Drive mode | 16s |
| LED packaging | SMD1921 |
| Module resolution | 64x64 |
| Module weight | 0.3kg |
| Module interface | HUB75-E |
| Module working voltage | 5V |
| Life span | 100000hours |
| Refresh rate | 1920Hz |
| Modules per square meter | 27.1pcs |
| White balance brightness | 800~1000nits |
| Working temperature | -20~50 |
| Working environment humidity | 10%～70% |
| Screen working voltage | 220V±15%/110V±15% |
| Best viewing angle | ≦140° |
| Noise rate | ＜0.0001 |
| IP rating | IP65 |

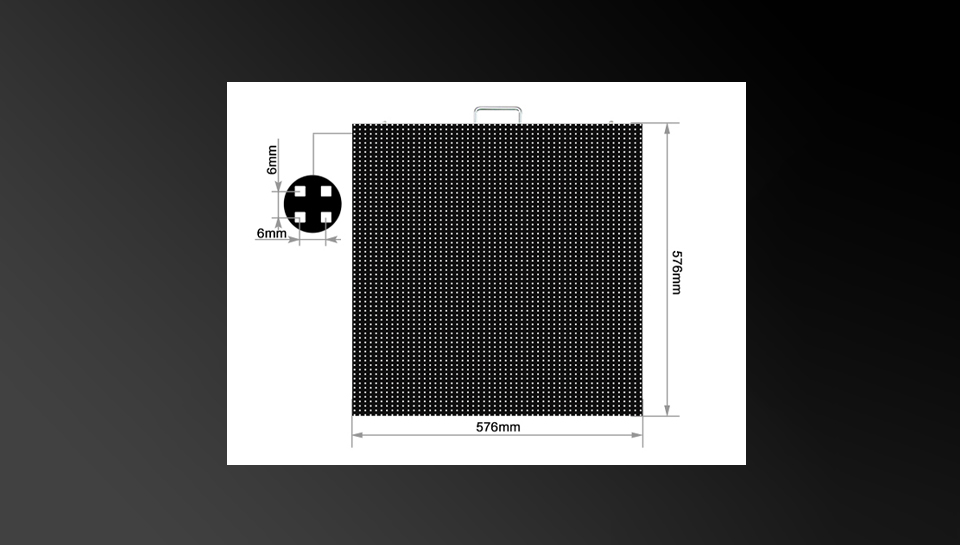

| Cabinet size | 576x576mm |
