P2.5 outdoor LED display P2.5 outdoor LED display

Die-Casting Aluminum Outdoor LED Display

P2.5 outdoor LED display

P2.5 outdoor LED display

P2.5 outdoor LED display

Pixel pitch: 2.5mm

​Module size: 320x160mm; 160x160mm

P2.5 outdoor rental LED display

Quick to install; IP65 protection

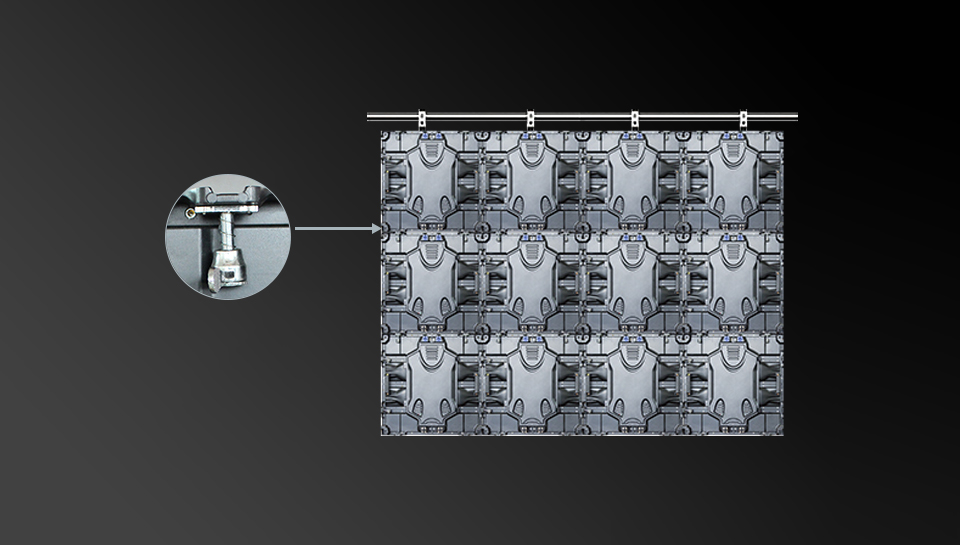

P2.5 outdoor LED display

Quick to install

Light and slim cabinet allows quick build screen in short time. Cabinet size is 640*640mm, unit cabinet weighs 11kgs. It's ideal for rental installation occasions which require small manpower and quick set up.
P2.5 outdoor LED display

IP65 waterproof protection

IP65 waterproof protection, with plastic led module mask,dustproof and waterproof.
P2.5 outdoor LED display


Pixel pitch2.5mm
Module size320x160mm;160x160mm
Pixels Density160000dots/sqm
Pixel configuration1R1G1B
Drive mode16s
LED packagingSMD1415
Module resolution128x84/64x64
Module weight0.4kg/0.28kg
Module interfaceHUB75-E
Module working voltage5V
Life span100000hours
Refresh rate1920Hz
Modules per square meter19.5pcs
White balance brightness5500~6000nits
Working temperature-20~50
Working environment humidity10%~70%
Screen working voltage220V±15%/110V±15%
Best viewing angle≦140°
Noise rate<0.0001
IP ratingIP65
Cabinet size640x640mm

The specifications are for reference, actual values may vary.
