P2.5 indoor LED Display P2.5 indoor LED Display

Die-Casting Aluminum LED Display

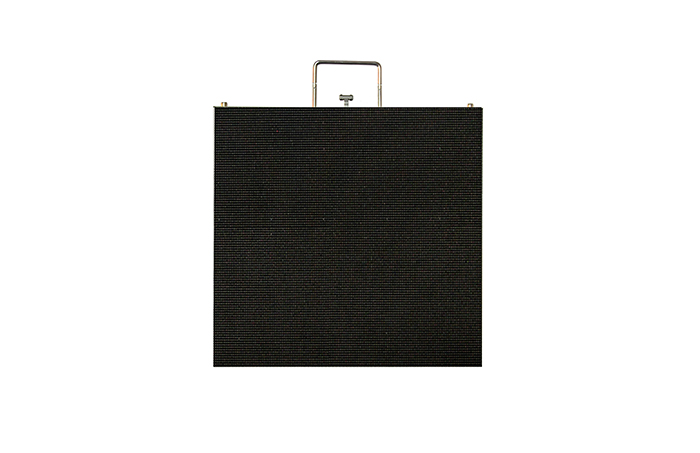

P2.5 indoor LED Display

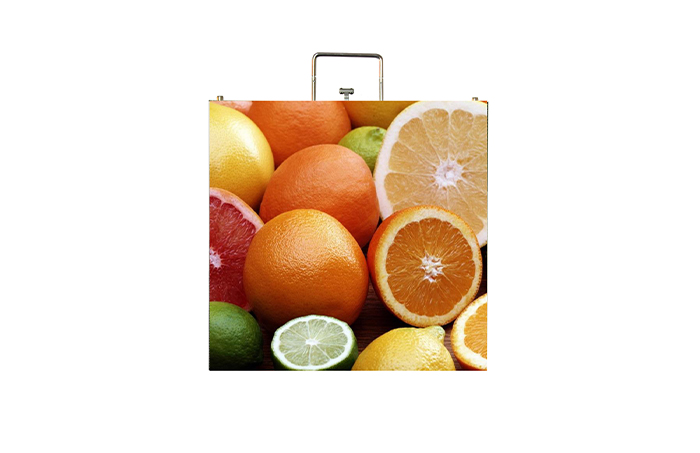

P2.5 indoor LED Display

P2.5 indoor LED Display

1. Ultra thin & light weight (only 8Kg/panel), portable handy.

2. Die-casting aluminum cabinet design with high precision.

3. Modular design, make it easy to maintain and replace.

4. HD show without water ripple on program broadcasting.

5. Easy to assemble & dismantle with fast locks on each cabinet.

6. High gray level & good color uniformity with brand lC, led lamp.

7. Energy saving without fans design, exclusive natural cooling effect.

8. 480x480mm and 640x640mm cabinet size for choose.

High Definition & Contrast Ratio

Compared with traditional white leds, pure black leds can obtain a better color uniformity and higher contrast ratio. Brand LED lamp with black body structure and black lamp mask provides 3000:1 contrast ratio, clearer and more bright-colored image.
P2.5 indoor LED Display

High Gray Scale & High Refresh Rate

Low brightness with high gray scale, and high refresh rate,more delicate display performance. This high definition led display choose the updated control solution and high quality Driver IC to realize brightness and Gray scale adjustment automatically. The latest control solution support pixel-pixel brightness correction to boardcast realistic pictures.
P2.5 indoor LED Display

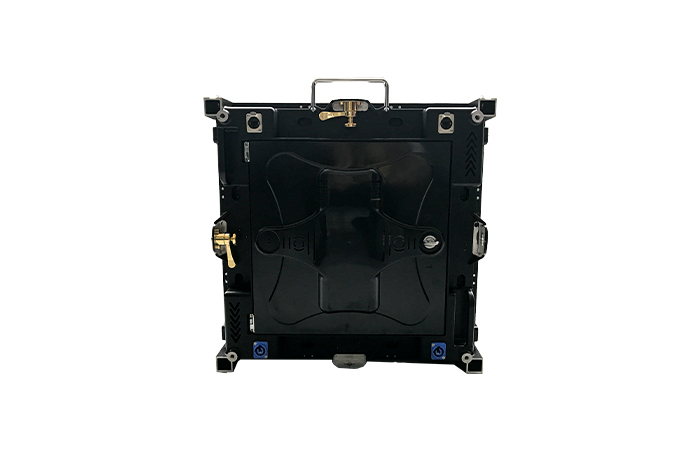

Front and Rear maintenance

Easy to replace and maintain with Front Sevice Structure, realizing time and labor saving. Just use the sucker and few seconds we can take the module out from the cabinet easily and quickly.
P2.5 indoor LED Display


Pixel pitch2.5mm
Module size320x160mm;160x160mm
Pixels Density160000dots/sqm
Pixel configuration1R1G1B
Drive mode32s
LED packagingSMD2121
Module resolution128x84/64x64
Module weight0.43kg/0.28kg
Module interfaceHUB75-E
Module working voltage5V
Life span100000houss
Refresh rate1920Hz
Modules per square meter19.5pcs/51pcs
White balance brightness800~1000NITS
Working temperature-20~50
Working environment humidity10%~70%
Screen working voltage220V±15%/110V±15%
Best viewing angle≦140°
Noise rate<0.0001
IP ratingIP43
Cabinet size640x640mm

The specifications are for reference, actual values may vary.
